TP-LINK VIGI NVR1008H-8MP VIGI 8 Channel PoE+ Network Video Recorder

คุณสมบัติสินค้า:

หมวดหมู่ : IP Camera BRAND TP-LINK

Share

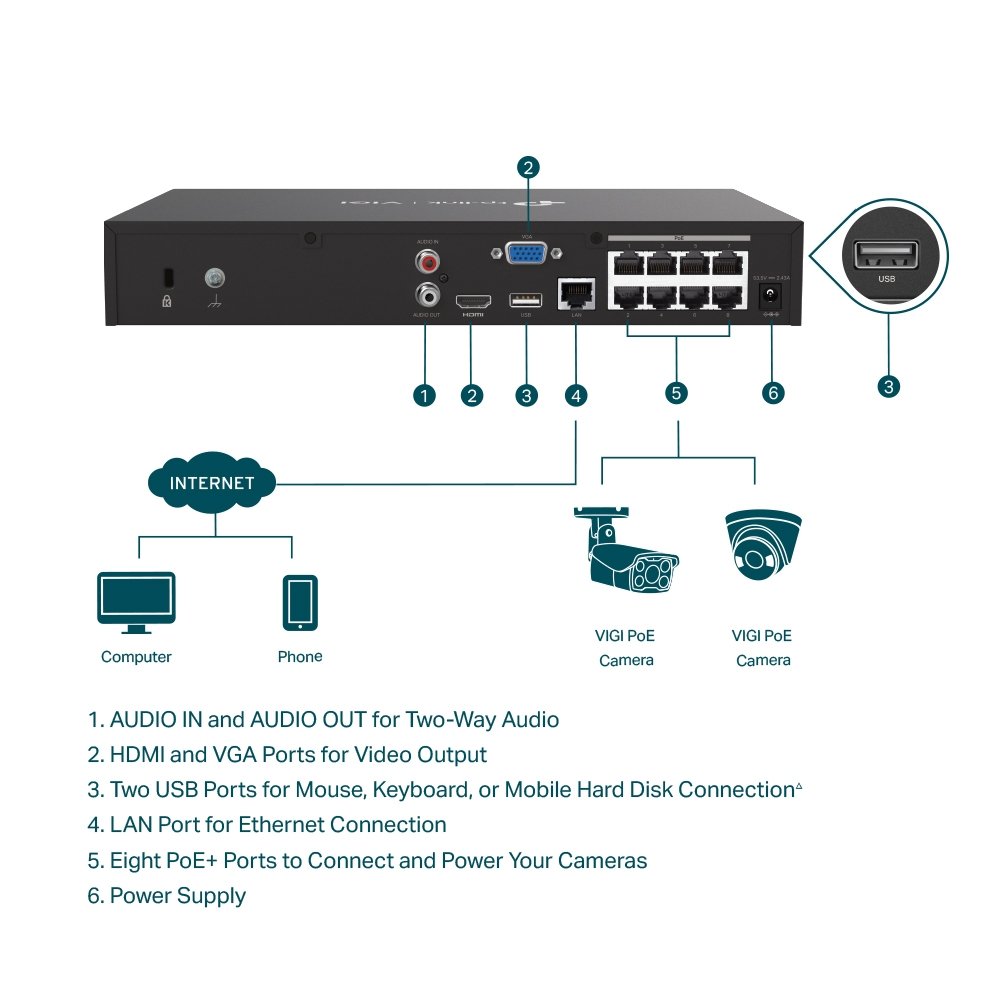

  • 4K HDMI Video Output & 16MP Decoding Capacity:  Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle‡.

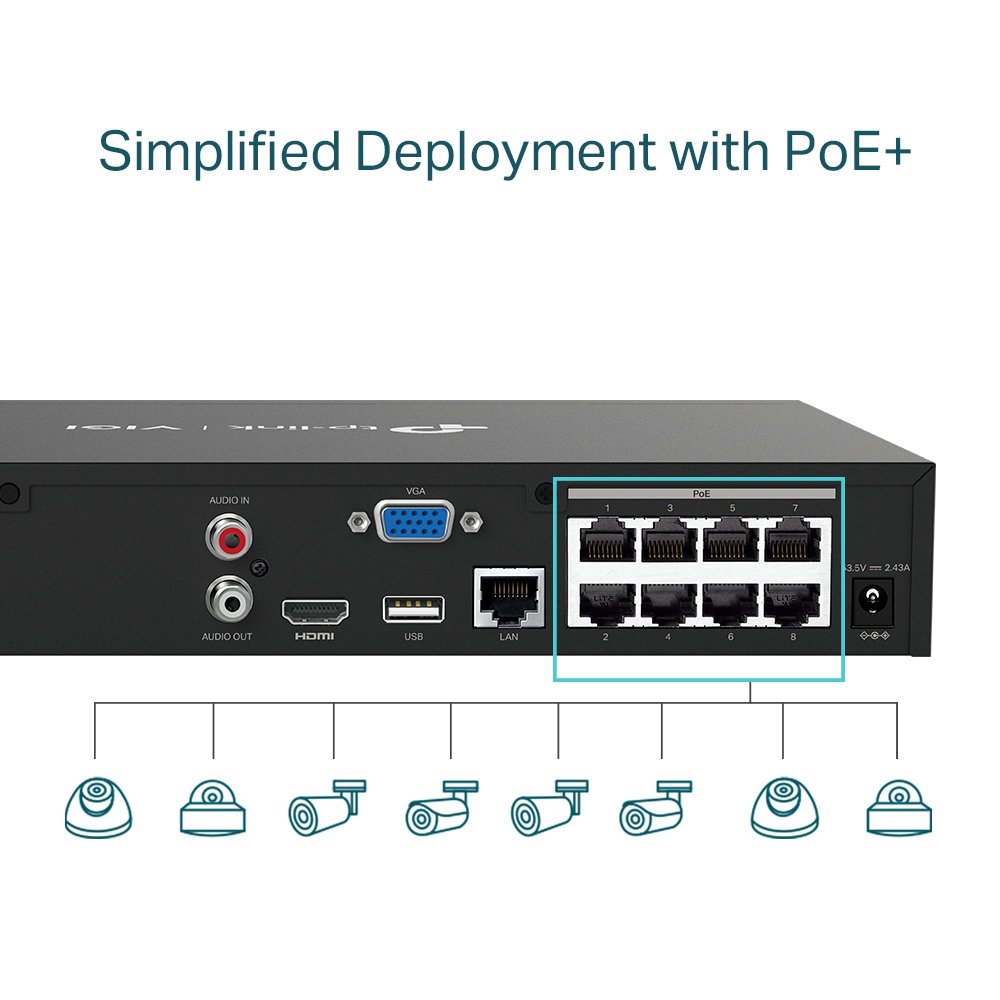

  • Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
  • 8-Channel Simultaneous Playback*: Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
  • H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

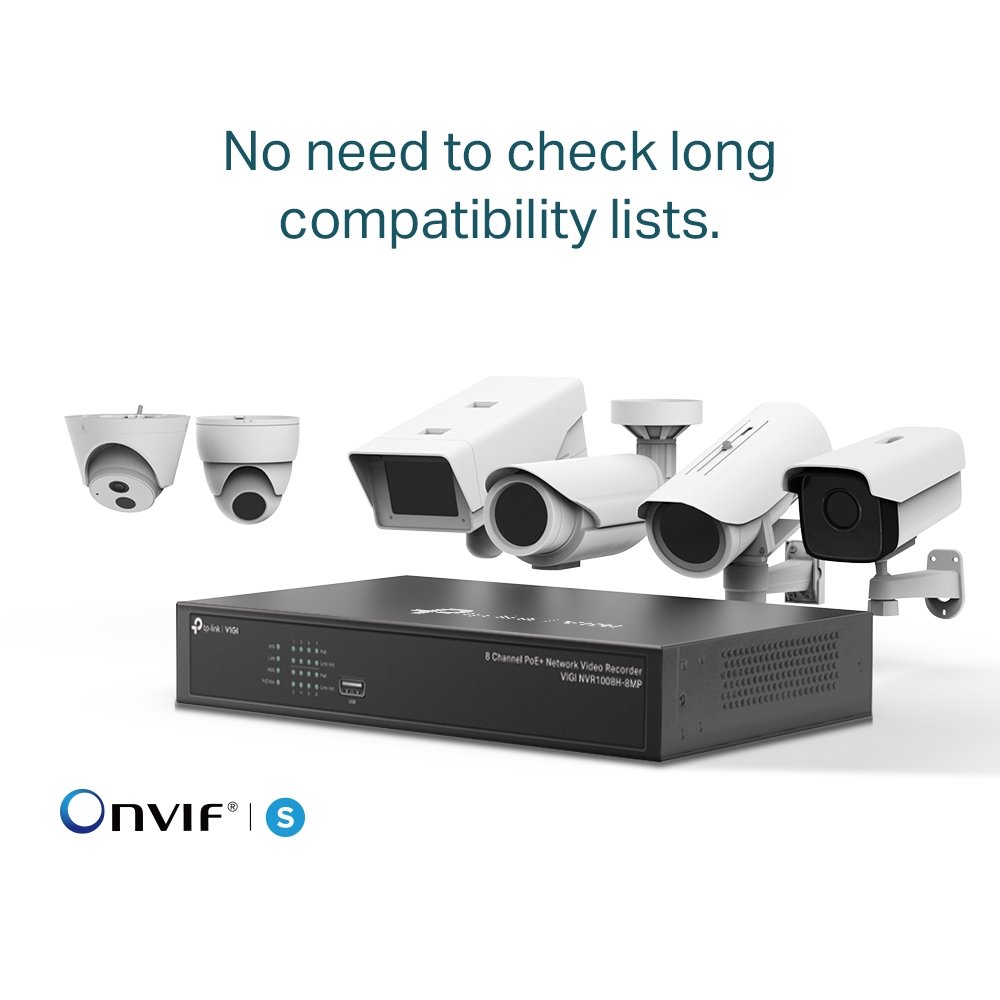

  • ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
  • Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
  • 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
  • Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
  • Flexible Installation: Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk for greater convenience.
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
NETWORK
ProtocolTCP/IP, DHCP, DNS, NTP, UPnP
Incoming Bandwith80 Mbps
Outgoing Bandwidth60 Mbps
GENERAL
Package ContentsVIGI Network Video Recorder
Power Adapter
HDD Screws
Mouse
Quick Installation Guide
Operating Temperature-10–55 °C
Dimensions( H X W X D )294 × 180 × 44 mm
External Power Supply53.5V DC/2.43 A
Power Consumption4.82 W (without disk)
VIDEO/IMAGE
Video Input8-Channel IP Video Input, up to 8 MP Resolution
Recording Resolution8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
HDMI Output Resolution1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz,
1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz,
1024x768/60Hz, 1280x720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz,
1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz,
1024x768/60Hz,
DECODING
Decoding FormatH.265+/H.265/ H.264+/H.264
Live View/Playback Resolution8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/
DCIF/2CIF/CIF/QCIF
Synchronous Playback8 Channel
Capability2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
HARD DISK
SATA1 SATA Interface
CapacityUp to 10 TB
INTERFACES
Network Interface1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface2× USB 2.0
