HARDWARE FEATURES | |
Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
Interface | 5× 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX |
Fan Quantity | Fanless |

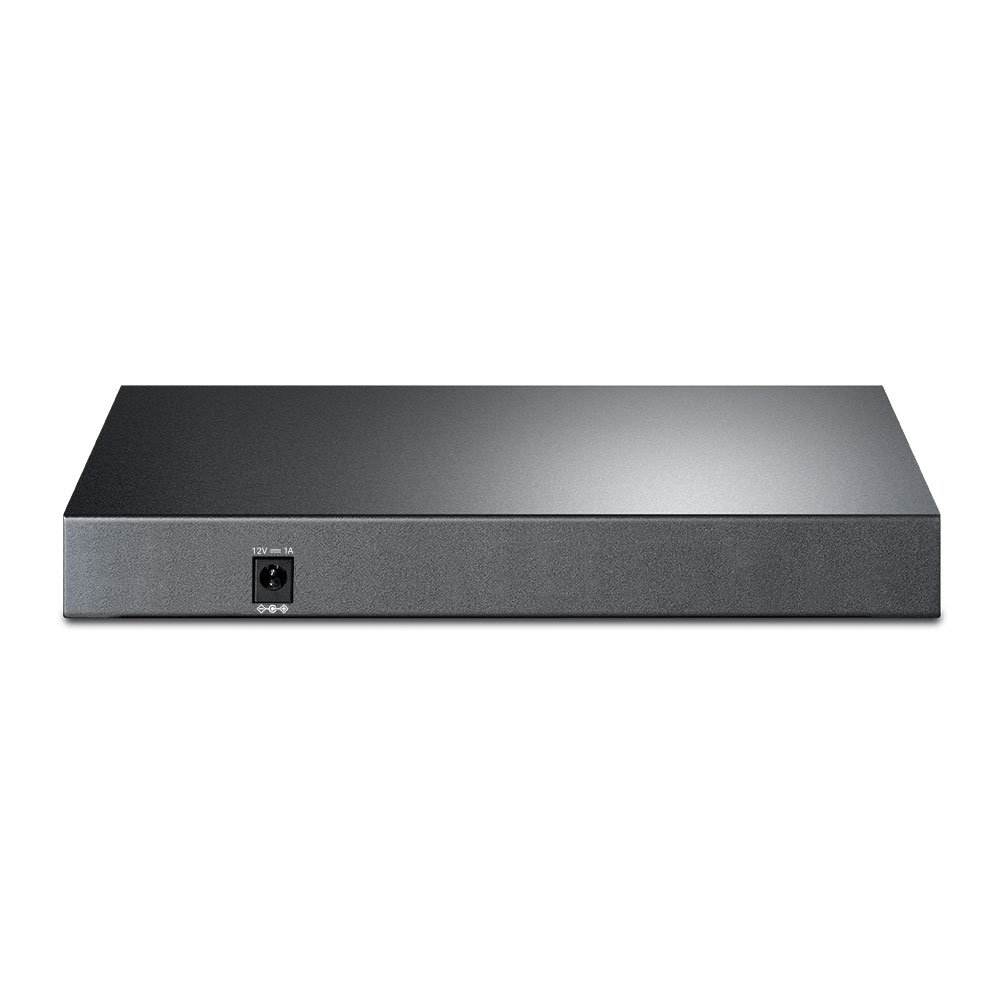

External Power Supply | External Power Adapter (Output: 12 VDC / 1 A) |
LED Indicator | • System Power: 1 • Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port |
Dimensions ( W x D x H ) | 8.2×4.9×1.0 in (209×126×26 mm) |
Max Power Consumption | 12.11 W |
Max Heat Dissipation | 41.32 BTU/h |
PERFORMANCE | |
Switching Capacity | 25 Gbps |
Packet Forwarding Rate | 18.6 Mpps |
MAC Address Table | 16 K |
Packet Buffer Memory | 1.5 Mb |
Jumbo Frame | 10 KB |
SOFTWARE FEATURES | |
Advanced Features | • 802.3X Flow Control • 802.1p/DSCP QoS |
Transfer Method | Store and Forward |
OTHERS | |
Certification | CE, FCC ,RoHS |

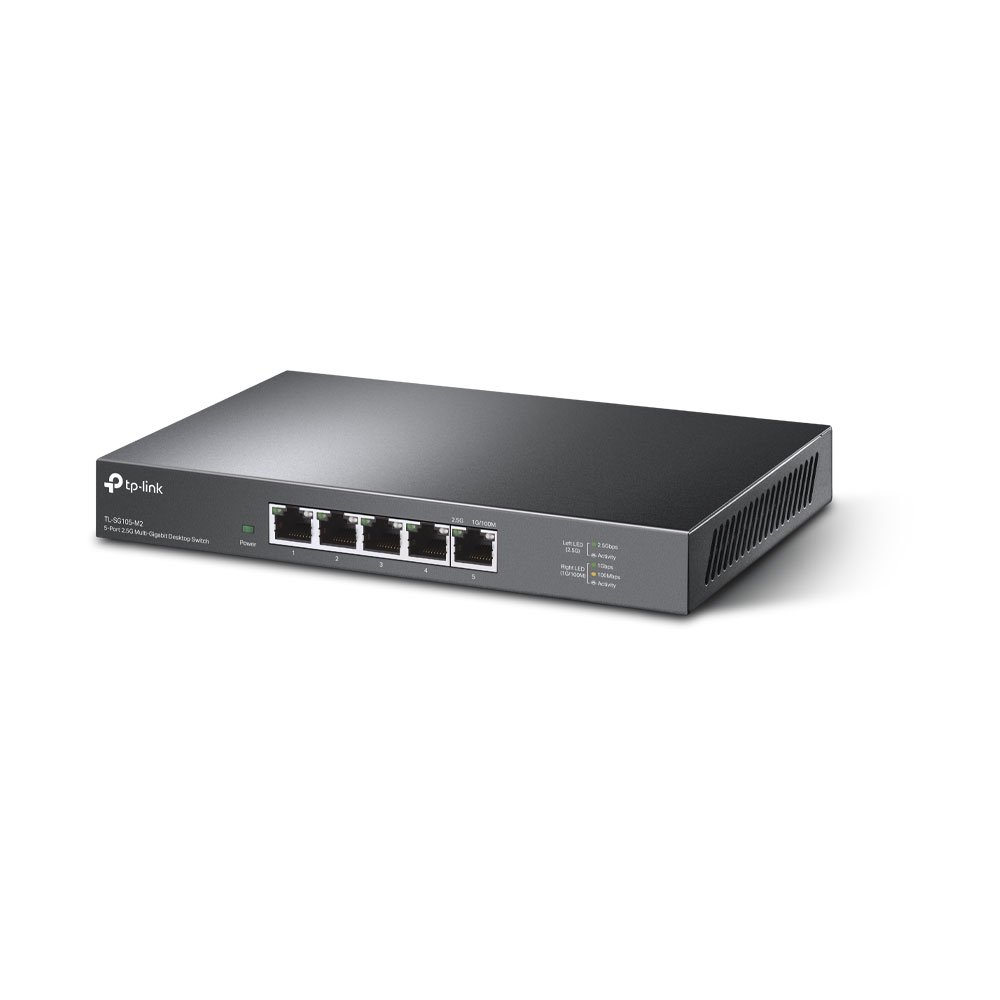

Package Contents | • 5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105-M2 • Power Adapter • Installation Guide • Rubber Feet |
Environment | • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
