HARDWARE FEATURES | |
Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
Interface | • 16× PoE+ gigabit RJ45 ports • 2× gigabit non-PoE RJ45 ports • 2× combo gigabit SFP slots |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF |
Fan Quantity | 2 |
Physical Security Lock | Yes |
Power Supply | 100–240 VAC, 50/60 Hz |

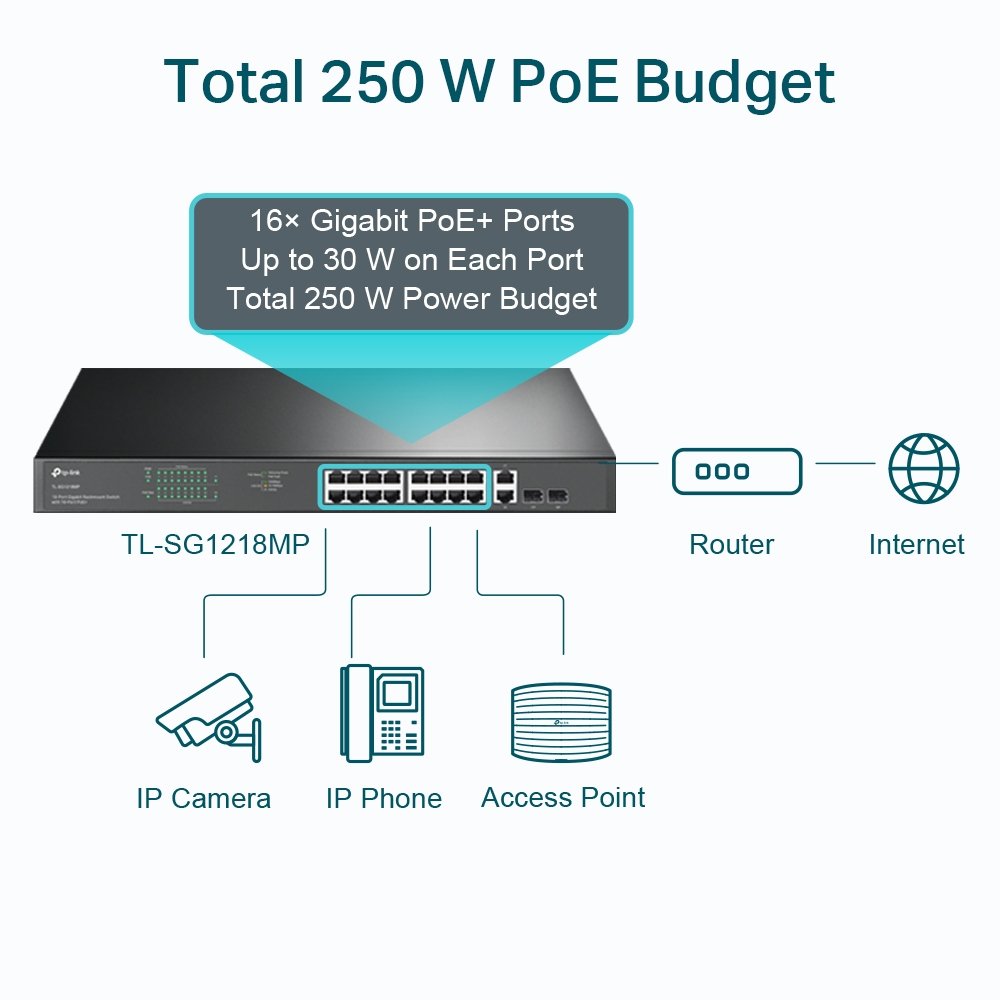

PoE+ Ports(RJ45) | • Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 250 W |
Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm) |
Mounting | Rack Mountable |
Max Power Consumption | • 21.4 W (220/50 Hz. no PD connected) • 286.64 W (220/50 Hz. with 250 W PD connected) |
Max Heat Dissipation | • 72.97 BTU/h (no PD connected) • 977.44 BTU/h (with 250 W PD connected) |
PERFORMANCE | |
Switching Capacity | 36 Gbps |
Packet Forwarding Rate | 26.78 Mbps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1 Mbit |
Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • 802.1p/DHCP QoS • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
Jumbo Frame | 10 KB |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents | • TL-SG1218MP • Installation Guide • Power Cord • Rackmount Kit • Rubber Feet |
Environment | • Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
