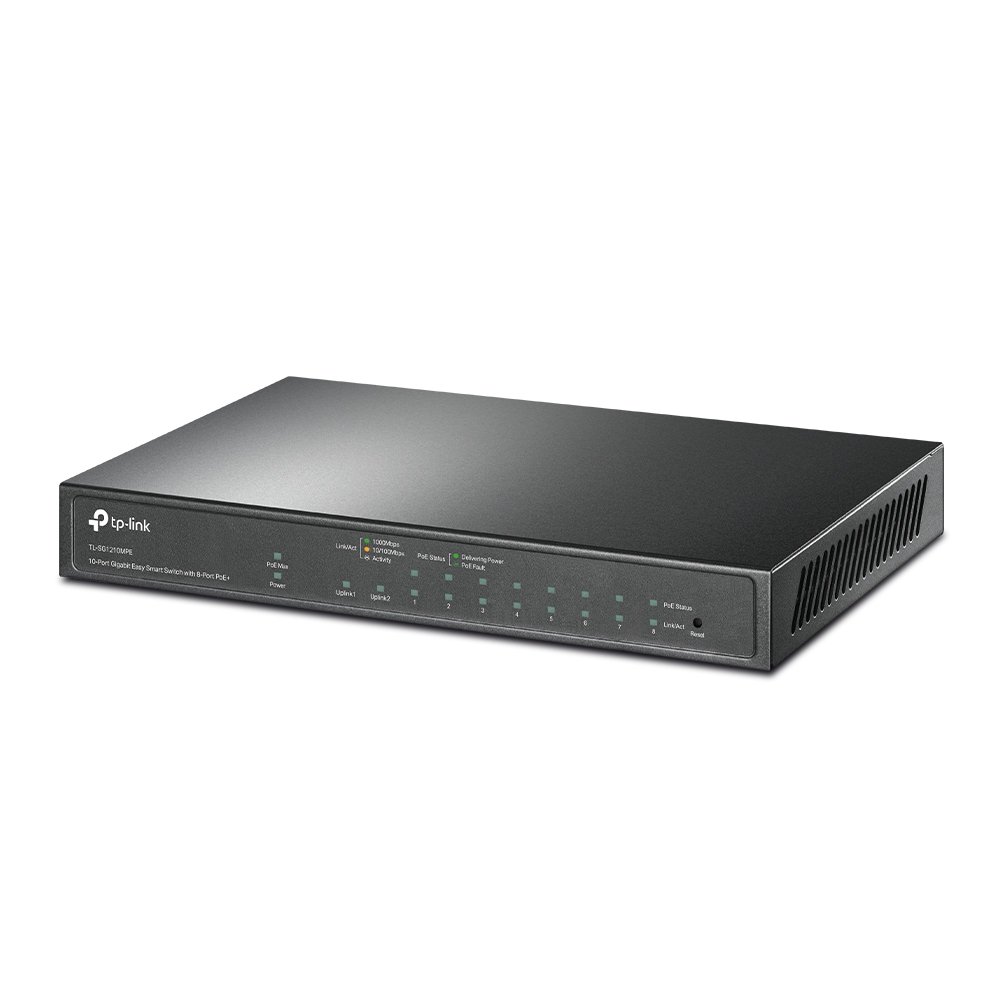

TP-LINK TL-SG1210MPE 10-Port Gigabit Easy Smart Switch with 8-Port PoE+

คุณสมบัติสินค้า:

หมวดหมู่ : Switch PoE Switch BRAND TP-LINK

Share

  • 9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port
  • Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
  • Supports PoE power up to 123 W for all PoE ports*
  • Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration
  • Fanless design lowers energy consumption and eliminates operating noise
HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z

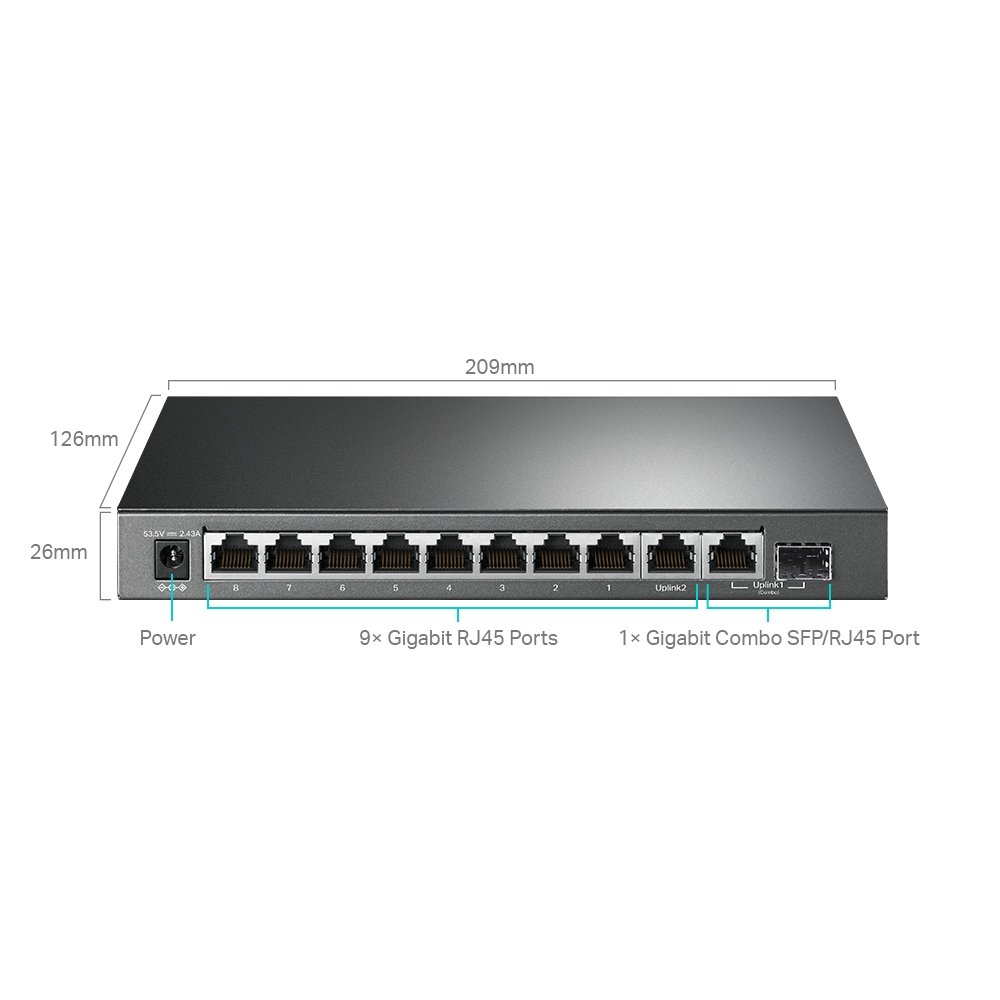

Interface9× 10/100/1000 Mbps RJ45 Ports
1× 1000 Mbps Combo SFP/RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan QuantityFanless
Power SupplyExternal Power Adapter (Output: 53.5 VDC/2.43 A)
PoE Ports (RJ45)Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 123 W
Dimensions ( W x D x H )8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption7.66 W (220V / 50Hz with no PD connected)
141.54 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation26.12 BTU/h (220V / 50Hz with no PD connected)
482.65 BTU/h (220V / 50Hz with 123 W PD connected)
PERFORMANCE
Switching Capacity20 Gbps
Packet Forwarding Rate14.88 Mpps
MAC Address Table4 K
Jumbo Frame16 KB
SOFTWARE FEATURES
Quality of ServiceSupport Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 FeaturesIGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLANSupports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
PoEExtend Mode**

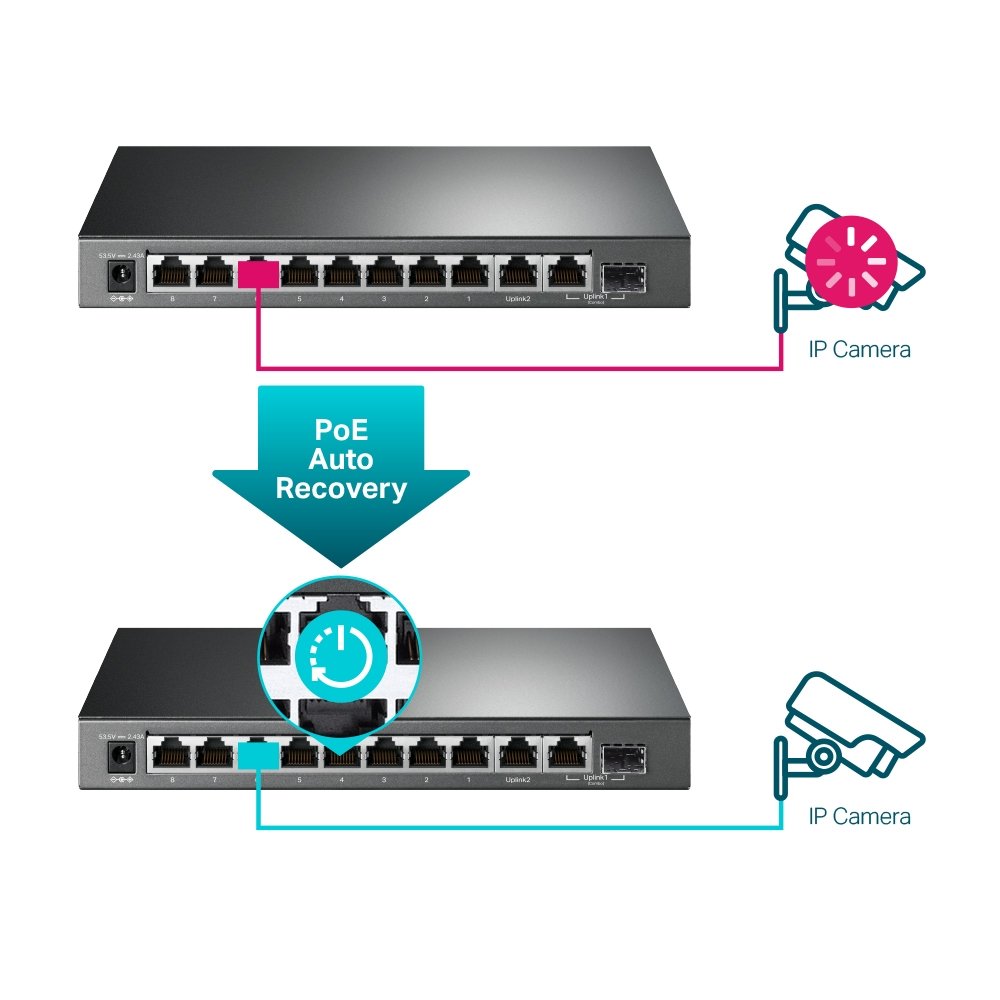

PoE Auto Recovery
ManagementWeb-based GUI
Easy Smart Configuration Utility
Transmission MethodStore-And-Forward
OTHERS
CertificationFCC, CE, RoHS
Package ContentsTL-SG1210MPE
Power Adapter
Installation Guide
Rubber Feet
System RequirementsMicrosoft® Windows® for running Utility
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
