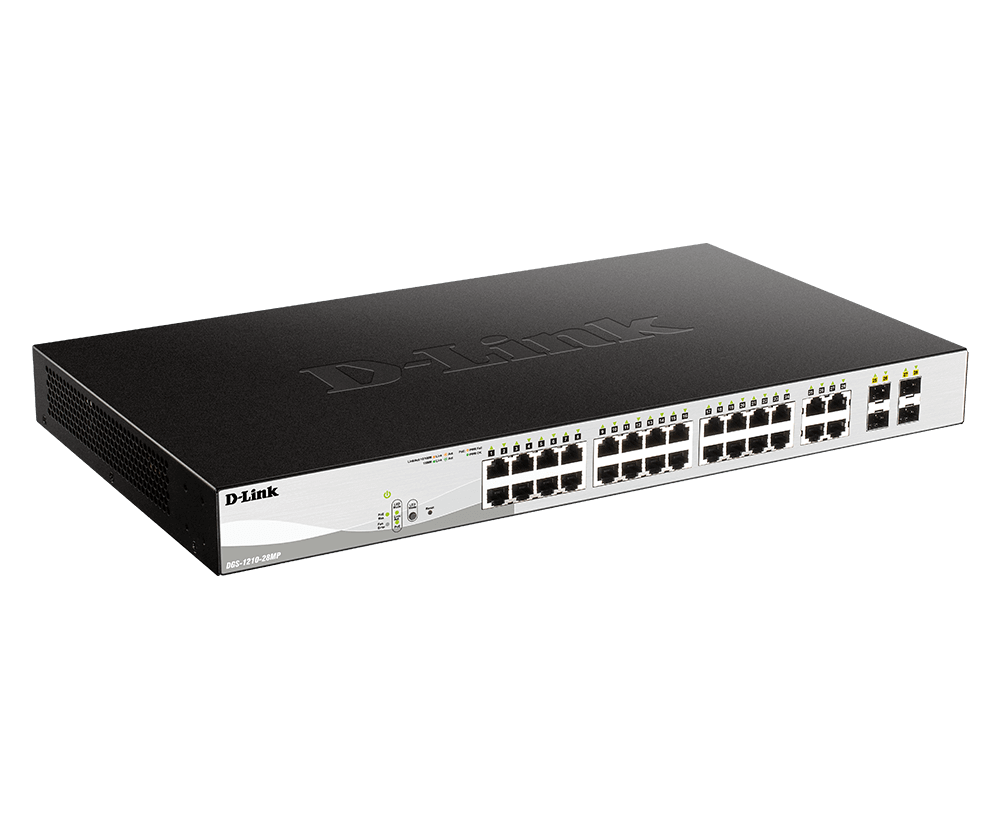

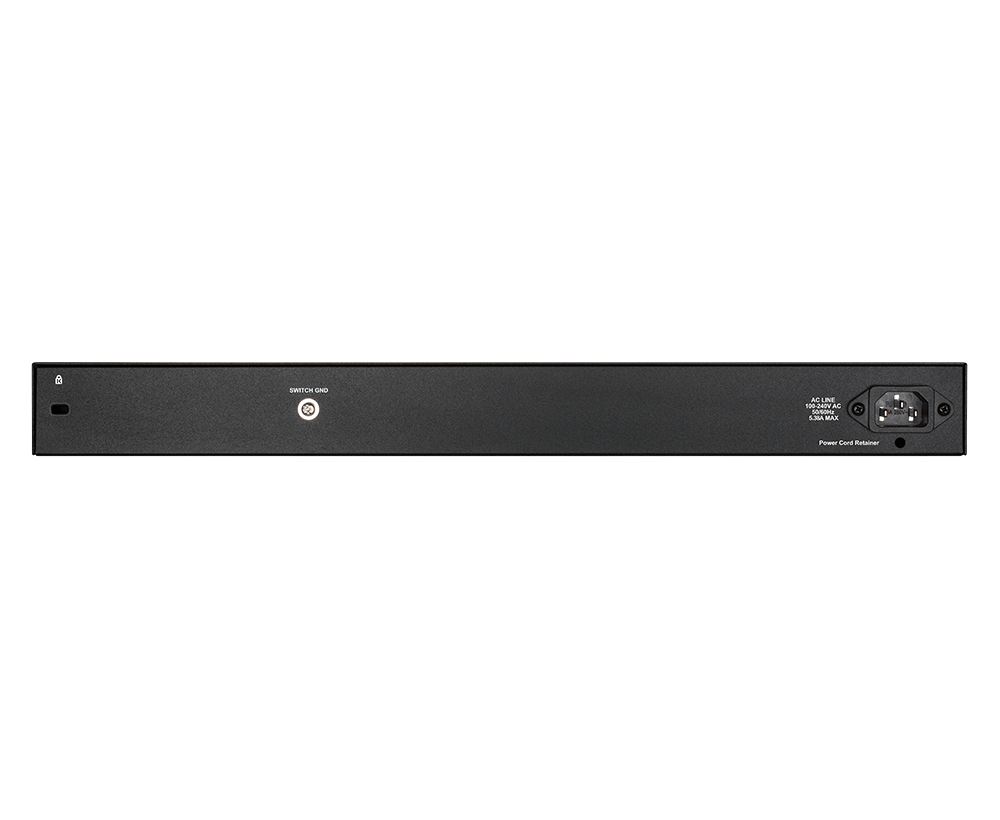

D-LINK DGS-1210-28MP 28-Port Gigabit Smart Managed PoE Switch

คุณสมบัติสินค้า:

หมวดหมู่ : Switch PoE Switch BRAND D-LINK

Share

24 x 10/100/1000BASE-T PoE ports
4 x Gigabit GbE/SFP combo ports
Advanced L2 switching and security features
L2+ Static Routing
Optional “standard mode” or “surveillance mode” management user interface
370W PoE budget

Specifications

1000Base-T PoE Interface24
Combo 1000Base-T/SFP4
Auto MDI/MDIXYes
10/100/1000BASE-T PoE ports24
Combo 10/100/1000BASE-T/SFP ports4
Switch Capacity56 Gbps
Max. Packet Forwarding Rate41.7 Mpps
Store & Forwarding ForwadingYes
Operation Temperature-5 - 50°C
Dimension440mm x 250 mm x 44mm
Weight3.94 kg
Storage Temperature-20-70°C
Operation Humidity0% - 95% RH
Storage Humidity0% ~ 95% RH
Operating Altitude1500 meters
Maximum Power ConsumptionPoE on
446.1 W/100 V
424.8 W/240 V
PoE off
29.8 W/100 V
29.0 W/240 V
Standby Power Consumption18.5 W/100V / 17.1 W/240V
Maximum Heat Dissipation1521.99 BTU/hr (100 V)
1449.49 BTU/hr (240 V)
MTBF277,967 hours
CPU Speed500MHz
Flash Memory Size32MB
Packet Buffer Size4.1MBits
DRAM SizeDDR3 128MB
FANYes
Power Input100-240 VAC
Comply with RoHS 6Yes
Energy Efficiency Ethernet (EEE)Yes
Power Saving By Link StatusYes
Power Saving By Cable LengthYes
Power Saving By Port Shut-OffYes
Power Saving By System HibernationYes
Time-based PoEYes
Maximum PoE Budget370W
PoE Budget370 W
802.3x Flow ControlYes
Head-of-line (HOL) Blocking PreventionYes
MAC Address Table Size8K
802.1D Spanning Tree (STP)Yes
802.1w Rapid Spanning Tree (RSTP)Yes
802.1s Multiple Spanning Tree (MSTP)Yes
Root RestrictionYes
802.3ad Link AggregationYes
Link Aggregation Group Per Device4
Max Port Per Link Aggregation Group8
Port MirroringYes
Jumbo Frame10,000 Bytes
Loopback Detection (LBD)Yes
IGMP SnoopingYes
Max IGMP Snooping Groups256
IGMP Snooping Fast LeaveYes
MLD SnoopingYes
MLD Snooping GroupsYes
MLD Snooping Fast LeaveYes
802.1Q VLANYes
VLAN GroupsYes
Port-based VLANYes
Voice VLANYes
Auto Surveillance VLANYes
Asymmetric VLANYes
ARPYes
IP InterfaceYes
Max Number of IP Interface4
ARP EntriesYes
IPv6 Neighbor Discovery (ND)Yes
ND Entries128
Default RouteYes
Static RouteYes
Class of Service (CoS)Yes
Number of QueueYes
Strict Priority Queue (SPQ)Yes
Weighted Round Robin (WRR)Yes
Port-based Bandwidth ControlYes
Max Access Control List (ACL) EntriesYes
MAC Access ListYes
IP Access ListYes
IPv6 Access ListYes
SSHYes
SSLYes (only support TLS 1.0)
Port SecurityYes
Broadcast/Multicast/Unicast Storm ControlYes
Traffic SegmentationYes
Smart IP-MAC-Port Binding (Smart IMPB)Yes
D-Link Safeguard EngineYes
DHCP Server ScreeningYes
ARP Spoofing PreventionYes
DoS Attack PreventionYes
802.1XYes
Port based 802.1X AuthenticationYes
Authentication for Management AccessYes
RADIUSYes
Trusted HostYes
Cable DiagnosticsYes
Simple Network Time Protocol (SNTP)Yes
Web-based GUIYes
SNMP TrapYes
SNMPYes
Telnet ServerYes
RMONv1Yes
TFTP ClientYes
System LogYes
D-Link Discover Protocol (DDP)Yes (v0.26)
LLDP-MEDYes
LLDPYes
Dual ImagesYes
DHCP relayYes
DHCP/BootP ClientYes
PingYes
Dual ConfigurationsYes
D-Link Network AssistantYes (Chrome edition)
Debug CommandYes
Smart WizardYes
