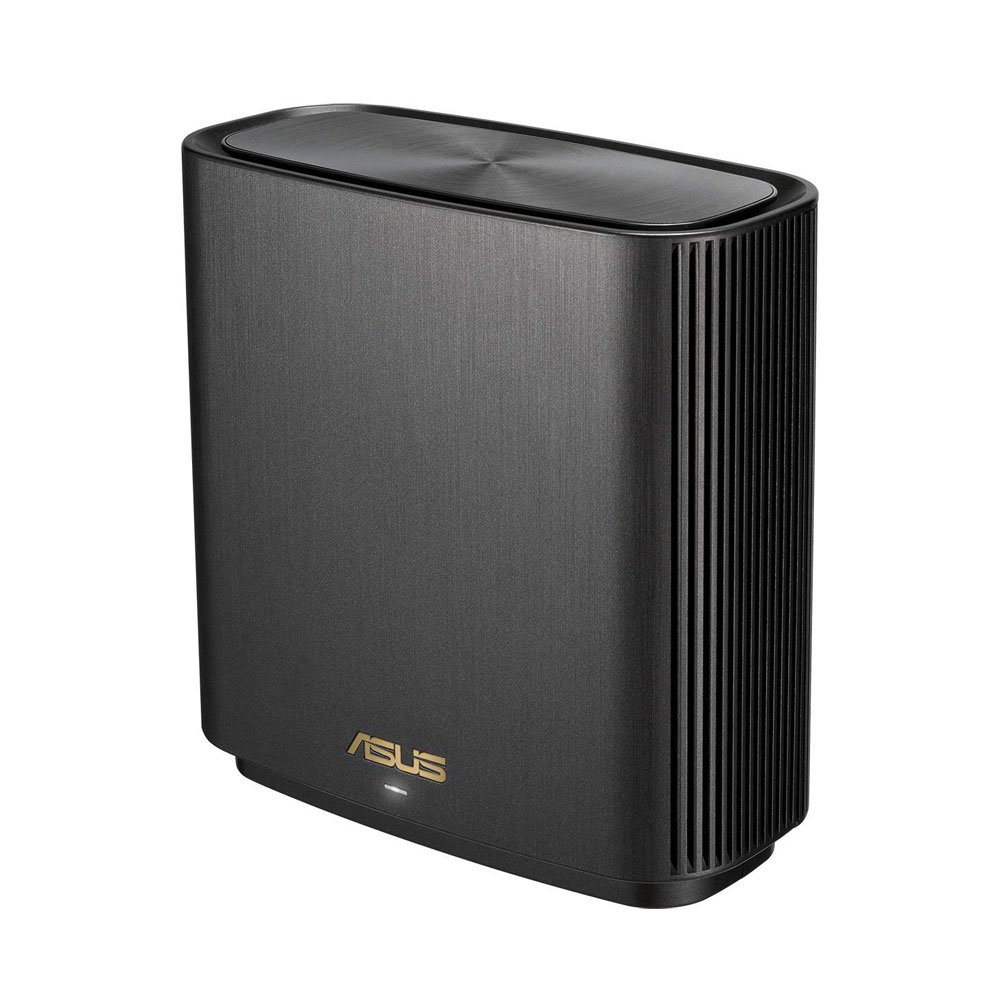

ASUS XT8 ZenWiFi AX6600 Wireless Tri-Band Mesh Wi-Fi System

หมวดหมู่ : Mesh WiFi ASUS

Share

ASUS ZenWiFi AX ประกอบด้วยเราเตอร์ ASUS AX6600 WiFi 6 จำนวน 2 ตัว ที่มีเทคโนโลยี Mesh WiFi ที่เป็นเอกลักษณ์ที่ให้การเชื่อมต่อ WiFi ที่รวดเร็ว เชื่อถือได้ และสัญญาณครอบคลุมทั้งบ้านของคุณ

  • Network Standard
    IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6
  • Coverage
    Very large homes
  • Data Rate
    802.11a : 6,9,12,18,24,36,48,54 Mbps
    802.11b : 1, 2, 5.5, 11 Mbps
    802.11g : 6,9,12,18,24,36,48,54 Mbps
    802.11n : up to 300 Mbps
    802.11ac (5GHZ-1):up to 867 Mbps
    802.11ac (5GHZ-2):up to 3466 Mbps
    802.11ax (2.4GHz) : up to 574 Mbps
    802.11ax (5GHZ-1):up to 1201 Mbps
    802.11ax (5GHZ-2):up to 4804 Mbps
  • Antenna
    Internal antenna x 6
  • Transmit/Receive
    2.4 GHz 2 x 2
    5 GHz-1 2 x 2
    5 GHz-2 4 x 4
  • Processor
    1.5 GHz quad-core processor
  • Memory
    256 MB Flash
    512 MB RAM
  • Wi-Fi Technology
    OFDMA (Orthogonal Frequency Division Multiple Access)
    Beamforming: standard-based and universal
    1024-QAM high data rate
    20/40/80/160 MHz bandwidth
  • Operating Frequency
    2.4G Hz, 5 GHz-1, 5 GHz-2
  • Encryption
    WPA3-PSK, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
  • Firewall & Access Control
    Firewall: SPI intrusion detection, DoS protection
    Access control:Parental control, Network service filter, URL filter, Port filter
  • Management
    UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log
  • VPN Support
    IPSec Pass-Through
    PPTP Pass-Through
    L2TP Pass-Through
    PPTP server
    OpenVPN server
    PPTP client
    L2TP client
    OpenVPN client
  • WAN Connection Type
    Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

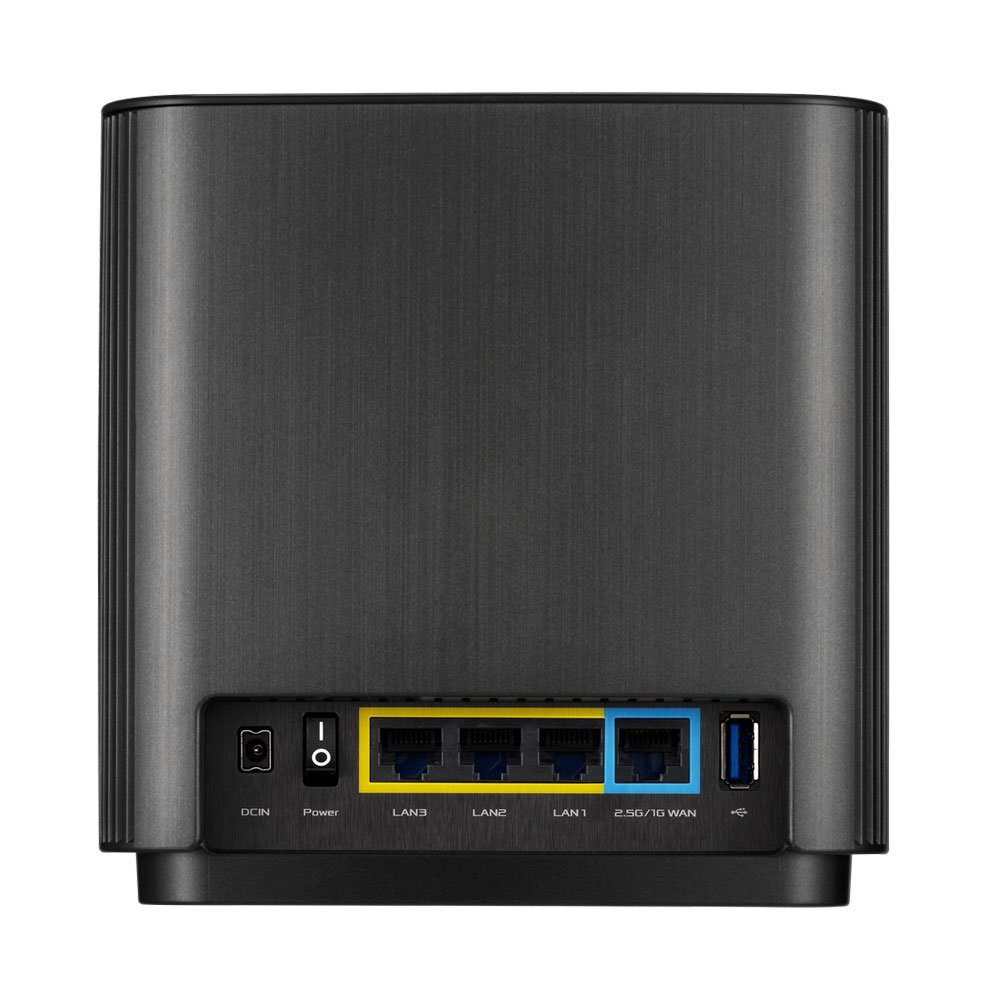

  • Ports
    RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
    USB 3.1 Gen 1 x 1
  • Features
    Range Boost
    Router app
    MU-MIMO
    Smart Connect
    Traffic Analyzer
    Adaptive QoS
    AiProtection Pro
    Parental Control
    Guest Network : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3
    VPN server : PPTP Server, OpenVPN Server, IPSec server
    VPN client : PPTP client, L2TP client, OpenVPN client
    NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
    Mac OS Backup
    Enhanced media server (AiPlayer app compatible)
    - Image : Jpeg
    - Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
    - Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
    AiCloud personal cloud service
    3G/4G data sharing
    Printer Server
    - Multifunctional printer support (Windows only)
    - LPR protocol support
    Download Master
    - Support bt, nzb, http, ed2k
    - Support encryption, DHT, PEX and magnet link
    - Upload and download bandwidth control
    - Download scheduling
    AiDisk file server
    - Samba and FTP server with account management
    IPTV support
    Roaming Assist
    OFDMA
    Beamforming
  • Button
    WPS Button, Reset Button, Power Switch
  • Power Supply
    AC Input : 110V~240V(50~60Hz)
    DC Output : 19 V with max. 1.75 A current
  • OS Support
    Windows® 10
    Windows® 8
    Windows® 7
    Mac OS X 10.6
    Mac OS X 10.7
    Mac OS X 10.8
  • Dimensions
    160 x 75 x 161.5 mm
  • Weight
    716 g
  • Package Content
    ZenWiFi AX
    RJ-45 Cable
    Power Adapter
    Quick Start Guide
    Warranty Card

ข้อมูลเพิ่มเติม ASUS XT8 ZenWiFi AX6600
