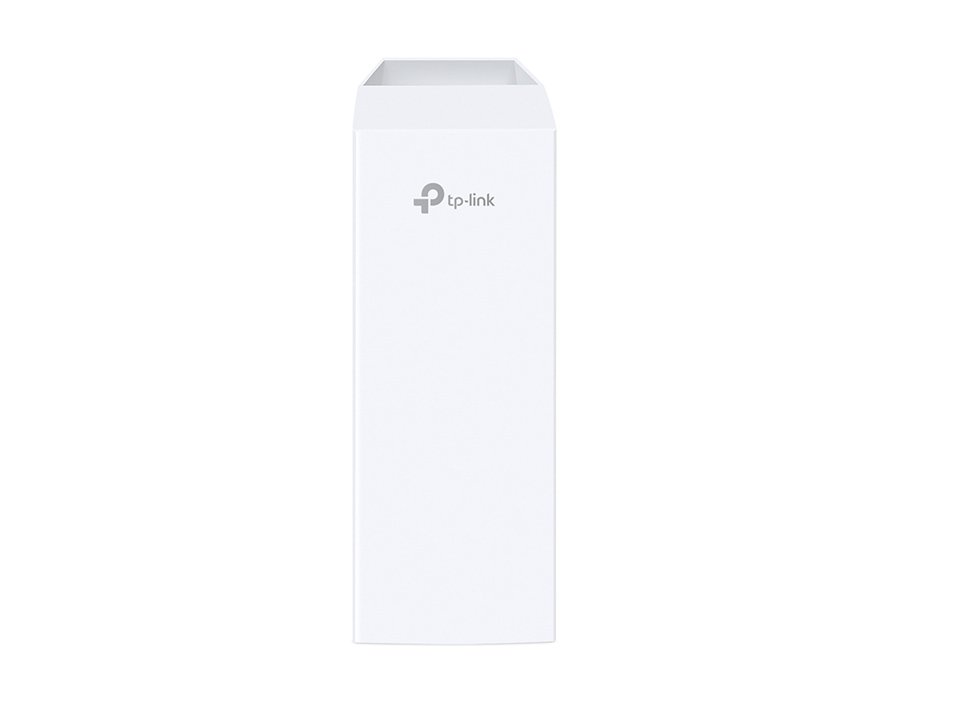

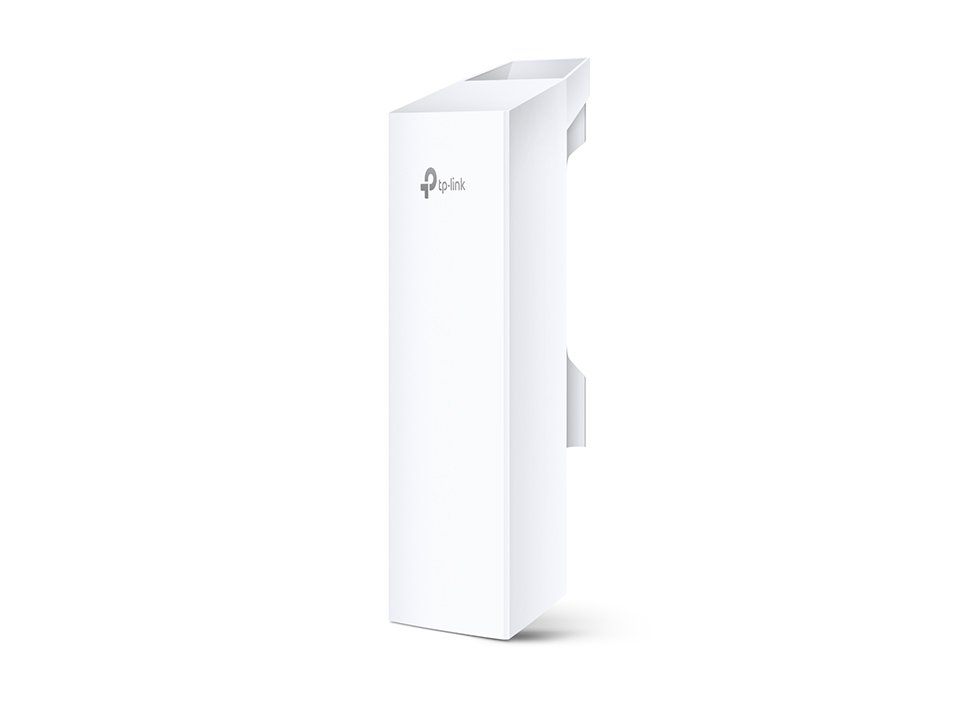

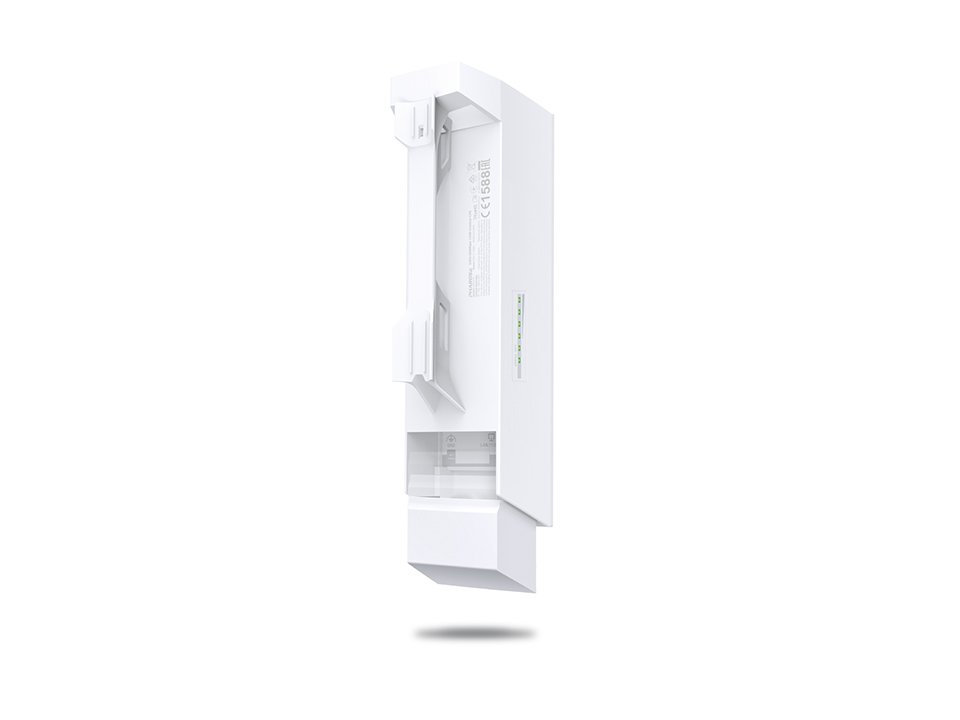

TP-LINK CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE

คุณสมบัติสินค้า:

หมวดหมู่ : Access Point Outdoor BRAND TP-LINK

Share

  • เสา 2x2 ภายในซึ่งสามารถรับและส่งได้ทั้งแบบคลื่นแนวตั้งและแนวนอน 9dBi
  • สามารถปรับเปลี่ยนค่ากำลังส่งจาก 0 ได้ถึง 27dBm/500mw
  • เพิ่มประสิทธิภาพของระบบให้รองรับได้ไกลมากกว่า 5km
  • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) เป็นเทคโนโลยีที่ช่วยเพิ่มประสิทธิภาพของ Throughput , ปริมาณผู้ใช้ , ลดค่าการดีเลย์ให้น้อยลง แนวคิดนี้สำหรับ Point to Multipoint
  • สามารถใช้ Pharos Control เป็นศูนย์กลางจัดการระบบ
  • มีระบบปฏิบัติการ AP / Client / Repeater / AP Router / AP Client Router (WISP)
  • Passive POE Adapter ที่ช่วยให้ติดตั้งได้ไกลถึง 60 เมตร (200 ฟีต) และยังสามารถเป็น Remote ไว้สำหรับ Reset ค่าอุปกรณ์
HARDWARE FEATURES
ProcessorQualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory64MB DDR2 RAM, 8MB Flash

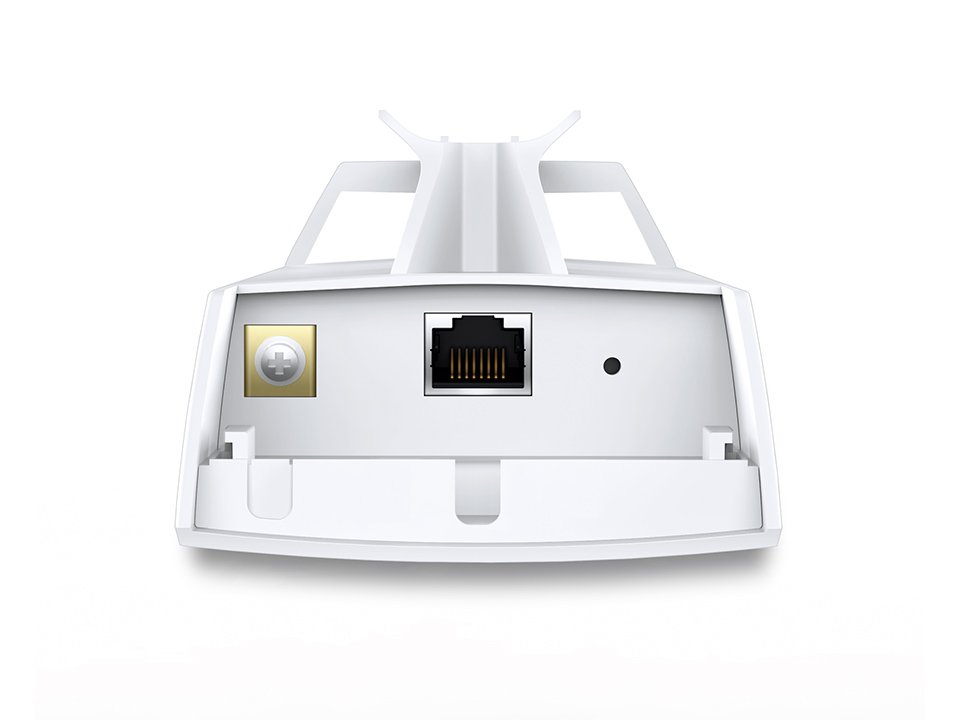

Interface1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 Grounding Terminal
1 Reset Button
Power SupplyPassive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H )224 x 79 x 60 mm
Antenna TypeBuilt-in 9dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 65° (H-Plane) / 35° (E-Plane)
Note: For more details, please refer to datasheet
Protection15KV ESD Protection
6KV Lightning Protection
EnclosureOutdoor ASA stabilized plastic material
IPX5 waterproof Certification
WIRELESS FEATURES
Wireless StandardsIEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary ProtocolTDMA Mode (with Pharos MAXtream enabled)
Wireless SpeedsUp to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmission Power27dBm/500mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
SOFTWARE FEATURES
Wireless ConfigurationsPharos MAXtream TDMA Technology
802.11b/g/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
ManagementDiscovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System ToolsWireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
System-level OptimizationsOptimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
POE ADAPTER FEATURES
Dimensions(W x D x H)110*57*33.5mm
Interfaces1 AC Jack with Earth Ground
1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
1 10/100/1000Mbps Shielded Ethernet Port (Data)
ButtonRemote Reset Button
Power Status LEDs0~0.8A: Green
0.8A~1.0A: Red
Input100-240VAC, 50/60Hz
Input Voltage100VA~240VAC @ 50Hz~60Hz
Input Current0.8A Max @ 100VAC
Output24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Output Voltage24VDC(+4,5pins; -7,8pins)
Efficiency>80%
CertificationsCE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTHERS
CertificationCE, FCC, RoHS, IPX5
Package ContentsOutdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
EnvironmentOperating Temperature: -30°C~70°C (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
