TP-LINK ER605 (TL-R605) Omada Gigabit VPN Router


หมวดหมู่ : VPN/Load Balance Router BRAND TP-LINK

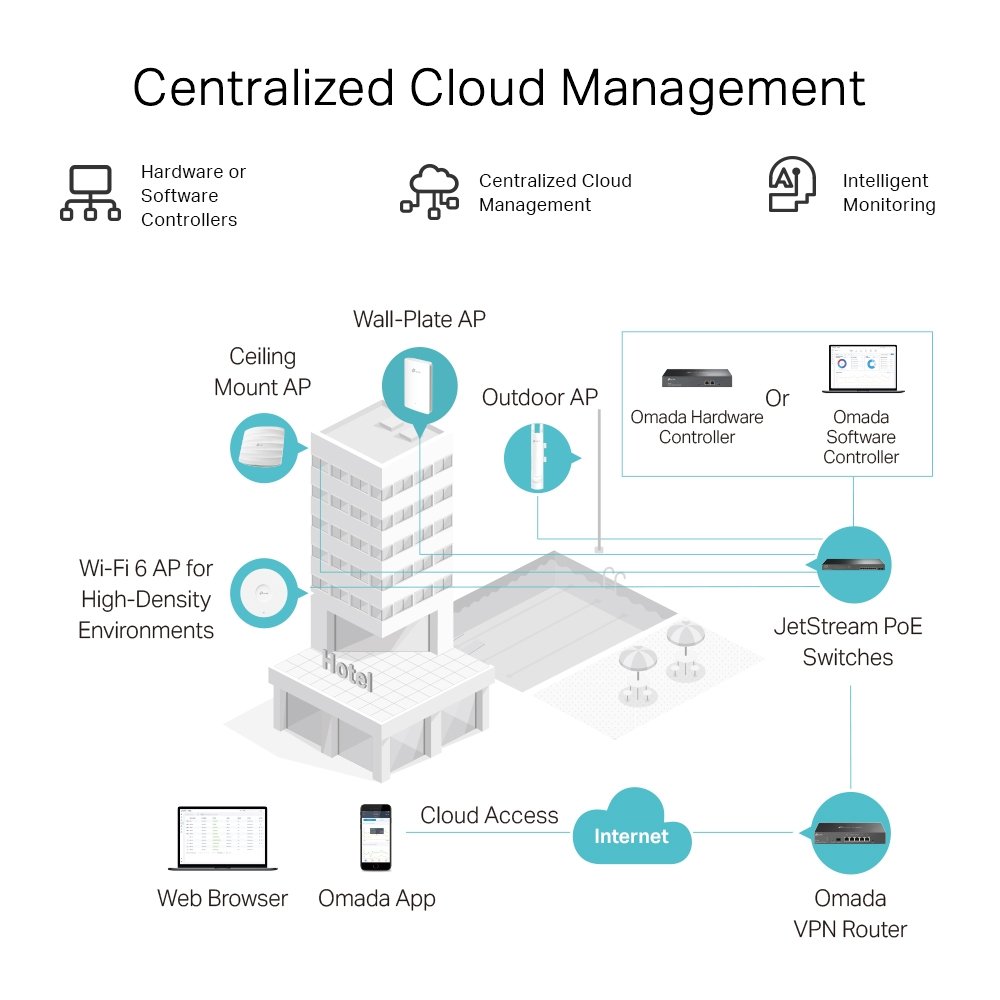

  • Integrated into Omada SDN: Zero-Touch Provisioning***, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for convenience and easy management.
  • Five Gigabit Ports: High-speed wired connectivity.
  • Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
  • One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.

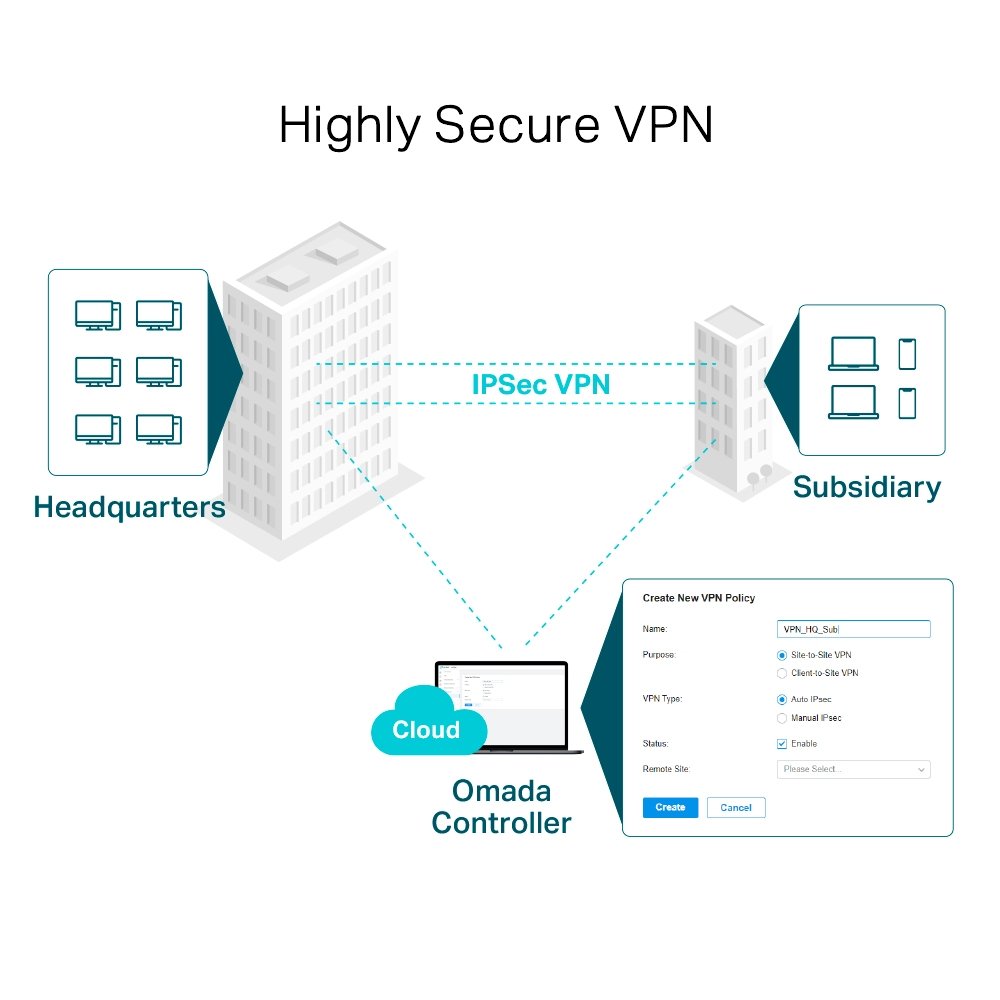

  • Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
  • Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.
Standards and Protocols• IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

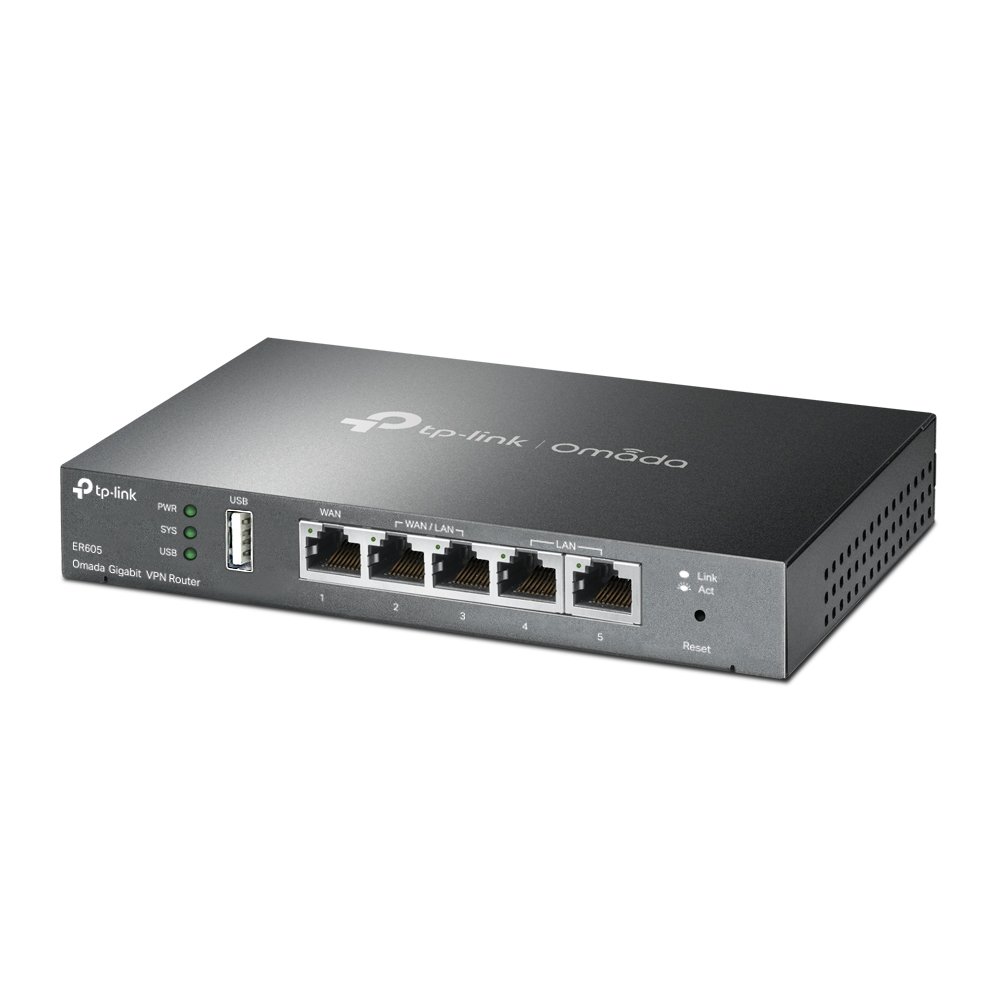

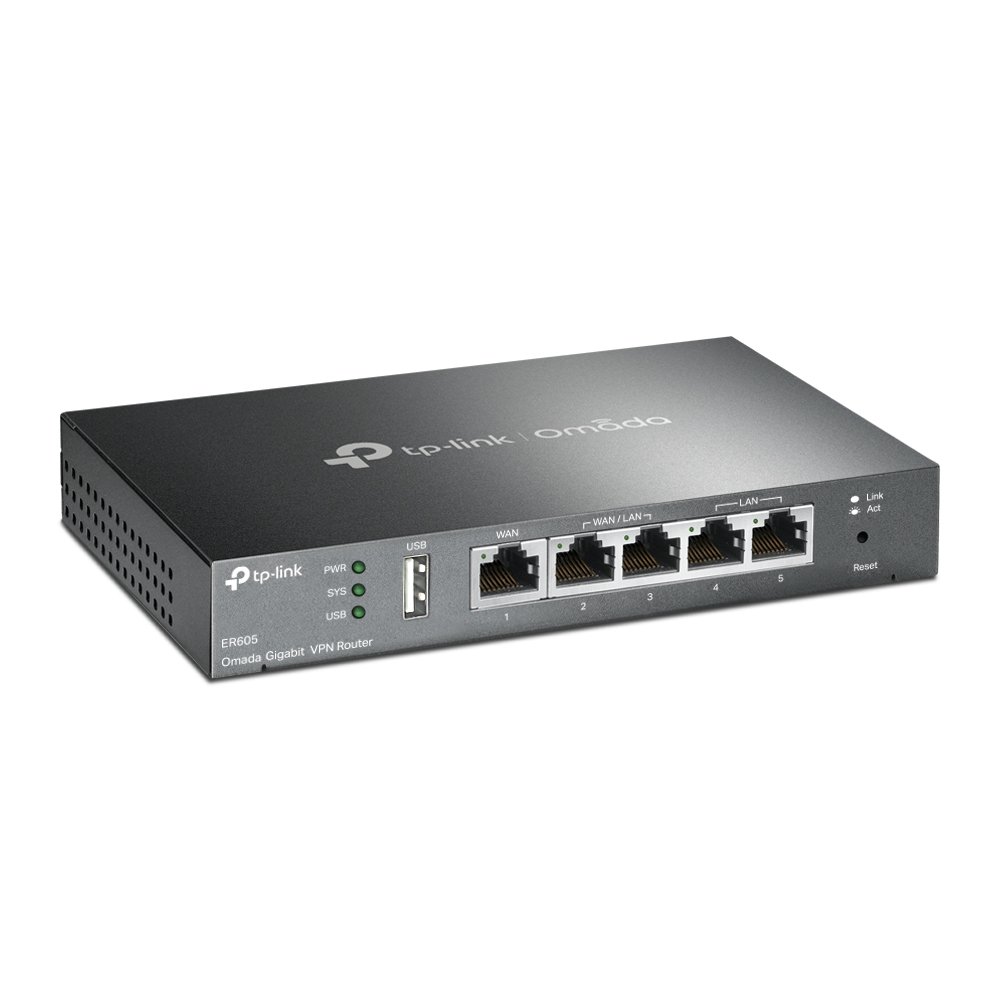

Interface• 1 Fixed Gigabit WAN Port• 2 Fixed Gigabit LAN Ports• 2 Changeable Gigabit WAN/LAN Ports• 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup)
Network Media• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)EIA/TIA-568 100Ω STP (Max 100m)• 100BASE-TX: UTP category 5, 5e cable (Max 100m)EIA/TIA-568 100Ω STP (Max 100m)• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
ButtonReset Button

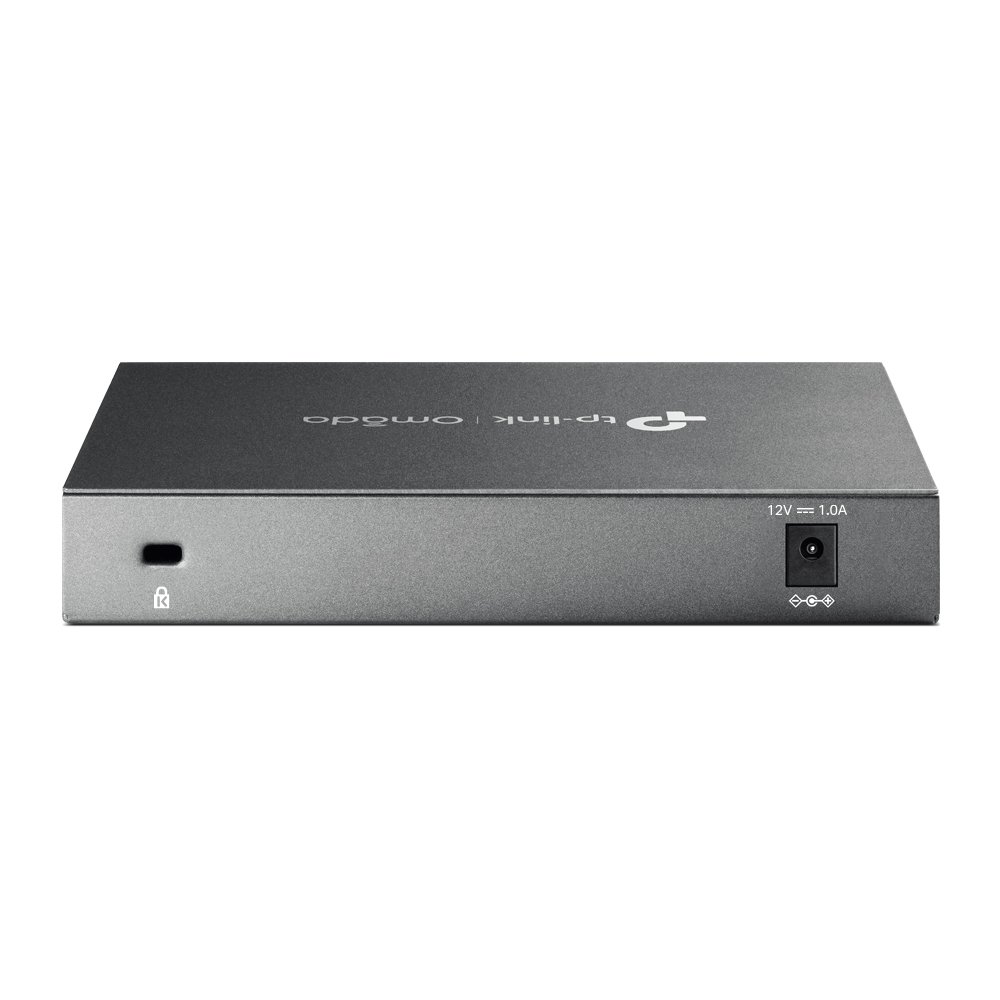

Power SupplyExternal 12V/1A DC Adapter
Flash128 MB NAND
LEDPWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
Dimensions ( W x D x H )6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
Max Power Consumption7.94 W
Concurrent Session150,000
New Sessions /Second2,600
NAT (Static IP)• Upload: 945.77 Mbps• Download: 945.56 Mbps• Bi-Directional: 1808.29 Mbps
NAT(DHCP)• Upload: 945.93 Mbps• Download: 945.43 Mbps• Bi-Directional: 1808.11 Mbps
NAT(PPPoE)• Upload: 940.44Mbps• Download: 940.52 Mbps• Bi-Directional: 1804.27 Mbps
NAT (L2TP)• Upload: 845.64 Mbps• Download: 802.65 Mbps• Bi-Directional: 931.96 Mbps
NAT (PPTP)• Upload: 771.66 Mbps• Download: 874.81 Mbps• Bi-Directional: 999.54 Mbps
64 Byte Packet Forwarding Rate• Upload/Download: 1,402,238 pps• Bi-Directional: 1,681,548 pps
IPsec VPN Throughput• ESP-MD5-AES256: 171.26 Mbps• ESP-SHA1-AES256: 224.86 Mbps• ESP-SHA2-AES256: 248.04 Mbps
OpenVPN• 21.70 Mbps
L2TP VPN Throughput• Unencrypted: 864.65 Mbps• Encrypted: 47.11 Mbps
PPTP VPN Throughput• Unencrypted: 703.20 Mbps• Encrypted: 76.65 Mbps
WAN Connection Type• Static/Dynamic IP• PPPoE• PPTP• L2TP• Mobile Broadband: 4G/3G modem for backup via USB port
MAC CloneModify WAN/LAN MAC Address
DHCP• DHCP Server/Client• DHCP Address Reservation• Multi-net DHCP*• Multi-IP Interfaces*
IPv6StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough
IPTVIGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ACLIP/Port/Protocol/Domain Name Filtering
Advanced Routing• Static Routing• Policy Routing
Bandwidth ControlIP-based Bandwidth Control
Load Balance• Intelligent Load Balance• Application Optimized Routing• Link Backup (Timing§, Failover)• Online Detection
NAT• One-to-One NAT§• Multi-Net NAT• Virtual Server• Port Triggering§• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security• SPI Firewall• VPN Passthrough• FTP/H.323/PPTP/SIP/IPsec ALG• DoS Defence, Ping of Death• Local Management
Session LimitIP-based Session Limit
IPsec VPN• 20 IPsec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm• IKEv1/v2• MD5, SHA1 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS)
PPTP VPN• PPTP VPN Server• 10 PPTP VPN Clients**• 16 Tunnels• PPTP with MPPE Encryption
L2TP VPN• L2TP VPN Server• 10 L2TP VPN Clients**• 16 Tunnels• L2TP over IPSec
OpenVPN• OpenVPN Server*• 10 OpenVPN Clients*• 16 OpenVPN Tunnels*
Filtering• WEB Group Filtering§• URL Filtering• Web Security§
ARP Inspection• Sending GARP Packets§• ARP Scanning§• IP-MAC Binding§
Attack Defense• TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN
Access ControlSource/Destination IP Based Access Control
Web Authentication• No Authentication• Simple Password*• Hotspot(Local User / Voucher* / SMS* / Radius*)• External Radius Sever• External Portal Sever*• Facebook*
Omada AppYes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller• Omada Cloud-Based Controller
Cloud AccessYes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
ServiceDynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance• Web Management Interface• Remote Management• Export & Import Configuration• SNMP v1/v2c/v3• Diagnostics (Ping & Traceroute)§• NTP Synchronize§• Syslog Support
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
Management Features• Automatic Device Discovery• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration
CertificationCE, FCC, RoHS
Package Contents• Gigabti VPN Router ER605• Power Adapter• RJ45 Ethernet Cable• Quick Installation Guide
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
Environment• Operating Temperature: 0–40 ℃ (32–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
