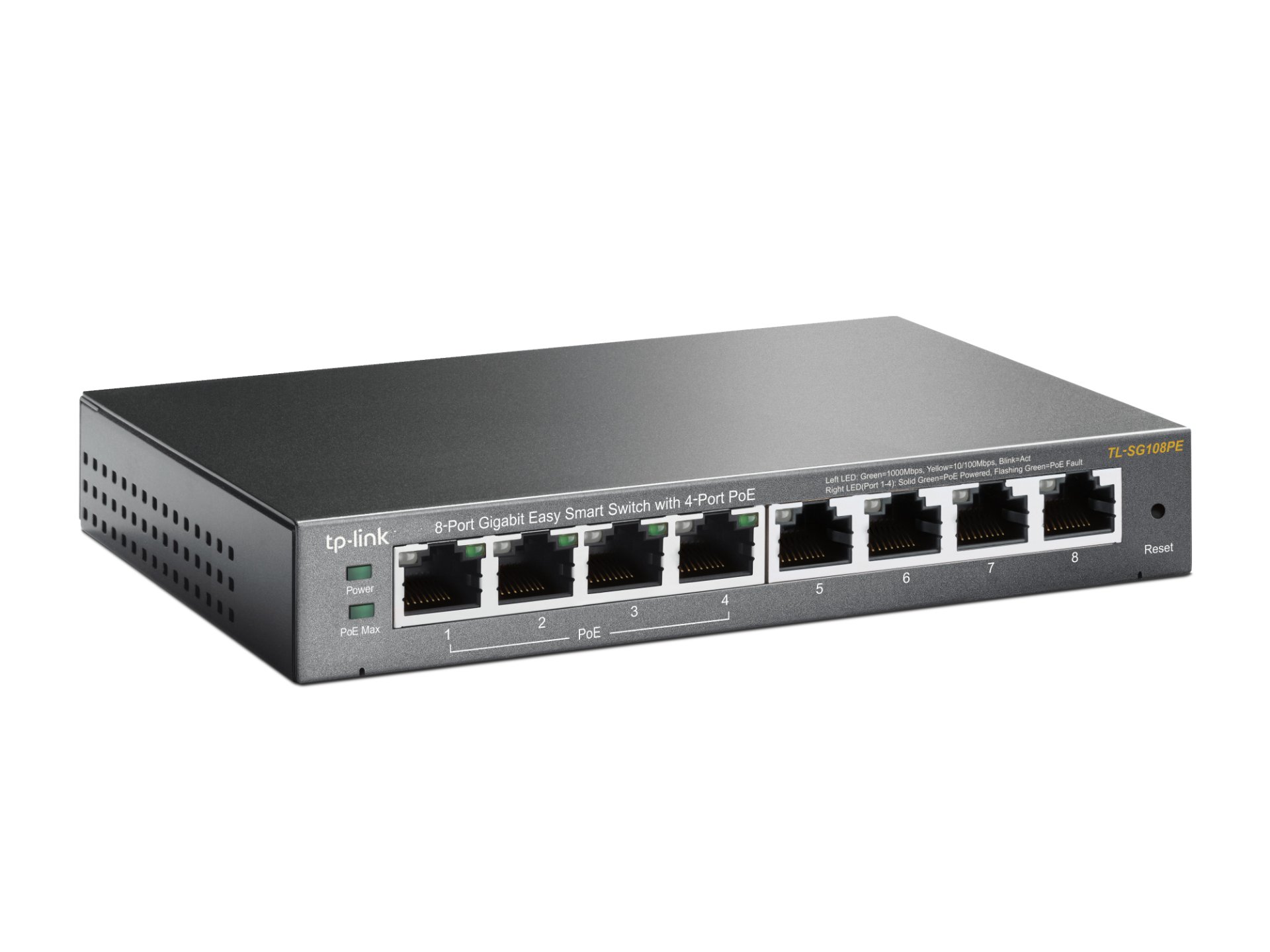

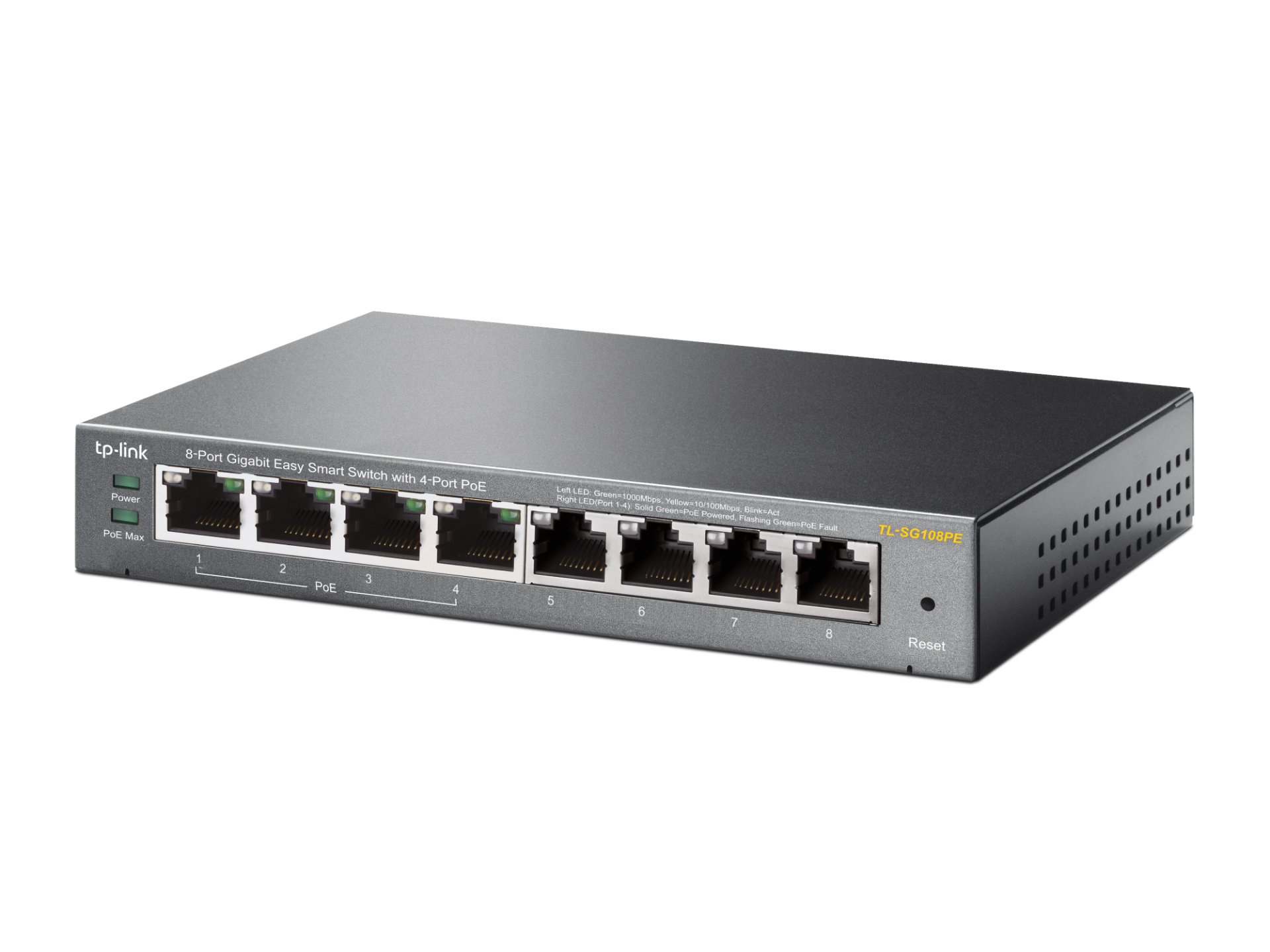

TP-LINK TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE

คุณสมบัติสินค้า:

หมวดหมู่ : Switch PoE Switch BRAND TP-LINK

Share

  • Equipped with 4 802.3af PoE ports with up to 15.4W for each port, data and power can be transferred on one single cable
  • Supports PoE power up to 55W for all PoE ports
  • Provides network monitoring, traffic prioritization and VLAN features
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration
HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
InterfaceEight 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan QuantityFanless
Power SupplyExternal Power Adapter (Output: 53.5 VDC/1.31 A)
PoE Ports (RJ45)Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 64W
Dimensions ( W x D x H )6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
Max Power Consumption5.41 W (220V/50Hz with no PD connected)
74.27 W (220V/50Hz with 64 W PD connected)
Max Heat Dissipation18.45 BTU/h (with no PD connected)
253.26 BTU/h (with 64 W PD connected)
PERFORMANCE
Switching Capacity16 Gbps
Packet Forwarding Rate11.9 Mpps
MAC Address Table4 K
Packet Buffer Memory1.5 Mb
Jumbo Frame16 KB
SOFTWARE FEATURES
Quality of ServiceSupport Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 FeaturesIGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
VLANSupports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
ManagementWeb-based GUI
Easy Smart Configuration Utility
Transmission MethodStore-And-Forward
OTHERS
CertificationFCC, CE, RoHS
Package ContentsTL-SG108PE
Power Adapter
Installation Guide
Rubber Feet
System RequirementsMicrosoft® Windows® for running Utility
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
